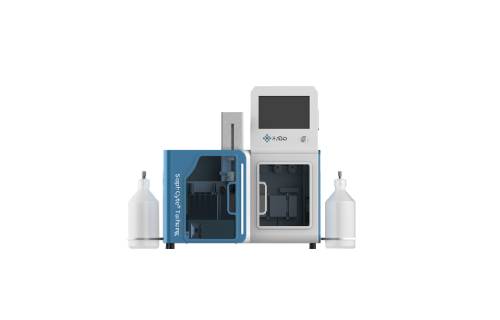

SophCyte® Taihang Multi-channel magnetic cell sorter
SophCyte® Taihang is a fully automated multi-channel magnetic sorting instrument based on magnetic separation technology. It is suitable for sorting various cells such as T cells, NK cells, and hematopoietic stem cells.
Product Description
SophCyte® Taihang is a fully automated multi-channel magnetic sorting instrument based on magnetic separation technology. It is suitable for sorting various cells such as T cells, NK cells, and hematopoietic stem cells.
● It meets the requirements of sterile sorting, using paramagnetic microbeads with a diameter of ≤50nm, and antibodies are directly or indirectly coupled to the microbeads. The microbeads are biodegradable and non-toxic to cells, and the sorted cells retain their complete cellular structure and function.
●After magnetic sorting, over 99% of the cells exhibit no change in FSC/SSC position, making them suitable for analysis and subsequent experiments
● After sorting, the purity of the cells can reach 95%, the recovery rate is over 90%, and the average cell activity is ≥ 95%
● Cells can be directly sorted from buffycoat, and over 10 kinds of XinBio buffycoat sorting magnetic beads are available
● Whole blood can be directly used for sorting, with a total blood volume of ≥ 28mL per sample for single sorting, without the need for red blood cell lysis or density gradient centrifugation
● Use sorting column method for sorting, sample loading by robotic arm, standardized pipetting, automatic labeling, mixing, column loading, and elution
● Equipped with real-time detection function, it can continuously monitor the real-time status of the instrument, buffer level, and sorting column status, and display them in real time. It can automatically record and display the usage time and sorting frequency of the sorting column
● It can automatically process 6 different samples in sequence at the same time, without the need to replace pipelines and sorting columns between samples
● 2 sorting columns built in, compatible with different sorting modes, can be used for positive sorting or removal sorting; The sorting column can be reused 100 times, and there is no need to replace the sorting column between samples each time
● Equipped with automatic segmented sample loading function
● Magnetic labeling cell quantity for single tube per sorting trial: ≥ 2x108 cells/sample
● Single tube single sorting total cell count ≥ 4X109 cells/sample
● Sorting speed: ≥ 107 cells/s
● The minimum volume for single tube single injection is ≤ 0.2mL/sample, and the maximum volume is ≥ 42mL/sample
● Sample loading rate to sorting column: 0.25mL/min~8mL/min
● Built in 16 sorting programs, including positive sorting, double positive sorting, removal sorting, sensitive removal sorting, etc
● Equipped with an automatic incubation reagent rack, it can simultaneously place ≥ 8 types of magnetic bead sorting reagents, and can achieve magnetic bead incubation of reagents and test tube samples through a robotic arm
● Three different low-temperature test tube racks are used for cooling to ensure that the samples remain in a low-temperature state throughout the entire sorting process
● Can be operated inside a biosafety cabinet
The specification compatible with 5mL flow tube rack is 6 * 4, which can hold 24 5mL flow tubes
● The device is equipped with 3 USB interfaces and Windows device operating system
● Built in 10.1-inch touch screen
● The sample carrier, sample rack, and reagent rack of the equipment can automatically move along the X-axis, and the sample carrier can be freely disassembled
● There are 4 LED lights at the solution bottle of the equipment, indicating 12 different statuses
● The device has user management functions, which can create, deactivate, and unlock users, manage user permissions, and have user levels>2
● Capable of tissue dissociation, capable of dissociating various physical tissues of mice and humans

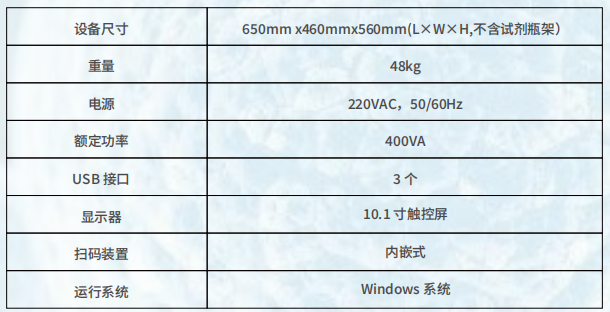

Product Information
Advantages
● Save manual operation time
Just place samples and reagents, select your settings, and then let SophCyte® Taihang automatically performs cell labeling and magnetic separation for you.
● Flexibility
With unlimited labeling options, target cells can be isolated from any starting material positively or untouched.
● Optimization
SophCyte® Taihang provides specialized procedures to isolate target cells with the highest purity, highest recovery, and highest speed - all depending on your need for downstream assays.
● Standardization
Immune cells will be isolated in a conventional way in each run to ensure efficient sample processing while reducing user differences and operator risks.
